About Terram Geotextiles

• Market leading international manufacturer with over 40 years of expertise
• Innovative, technically superior design
• Dynamic research and development program
• Low cost due to unique manufacturing process

Civil & Rural Sectors

• Road construction
• Soil reinforcement
• Ground stabilisation
• Filtration
• Drainage
• Erosion control
• Mud block

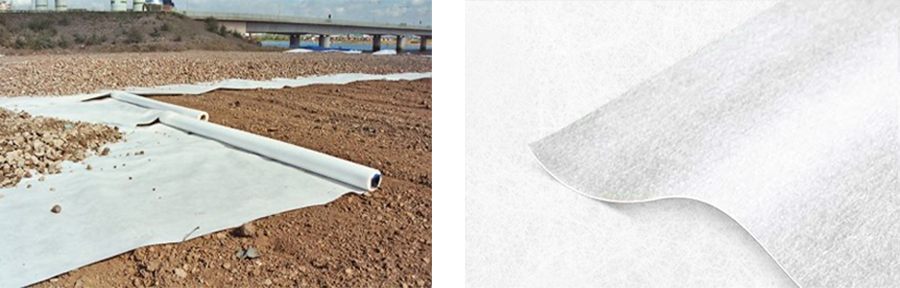

TERRAM Standard Geotextiles

TERRAM Standard Geotextiles enhance the performance and design life of granular layers by providing the filtration and separation functions. Typical uses for TERRAM Standard Geotextiles include ground stabilisation (between the sub-base and subgrade) and around drainage materials.

Preventing intermixing of granular materials and soils

TERRAM Standard Geotextiles provide an effective solution to the problem of constructing a stable granular layer over soft foundation soils. When stone is placed directly on a soft subgrade, the imposed load often causes intermixing of two layers. This results in contamination of the stone layer and a resulting loss in bearing strength, surface rutting and deformation at the sub-base / subgrade interface.

Preventing the ingress of fines into drainage media

Whether it’s a granular drain or a geosynthetic alternative such as open geocellular units, TERRAM Standard Geotextiles are ideal for preventing the ingress of fines.

Features

  • Engineered to provide high strength and high elongation at break
  • Manufactured from high tenacity UV stabilised virgin polypropylene _bres to provide long term durability in all soil types
  • Manufactured using a randomly orientated web to provide completely isotropic properties
  • Excellent uniformity with high permeability and low pore size for soil _ltration

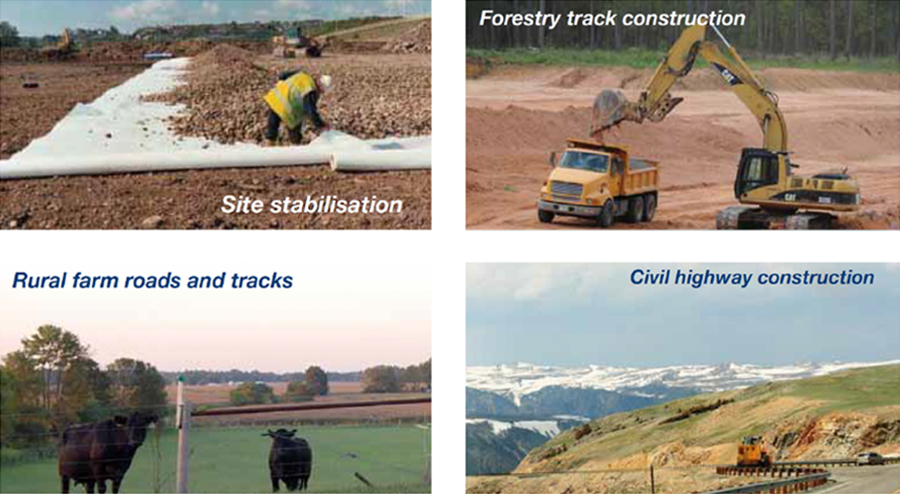

TERRAM filters / separators are used extensively in the construction of

  • Paved and unpaved roads
  • Railways
  • Car parks and hardstandings
  • Cycleways and footpaths
  • SuDS installations
  • Green roofs

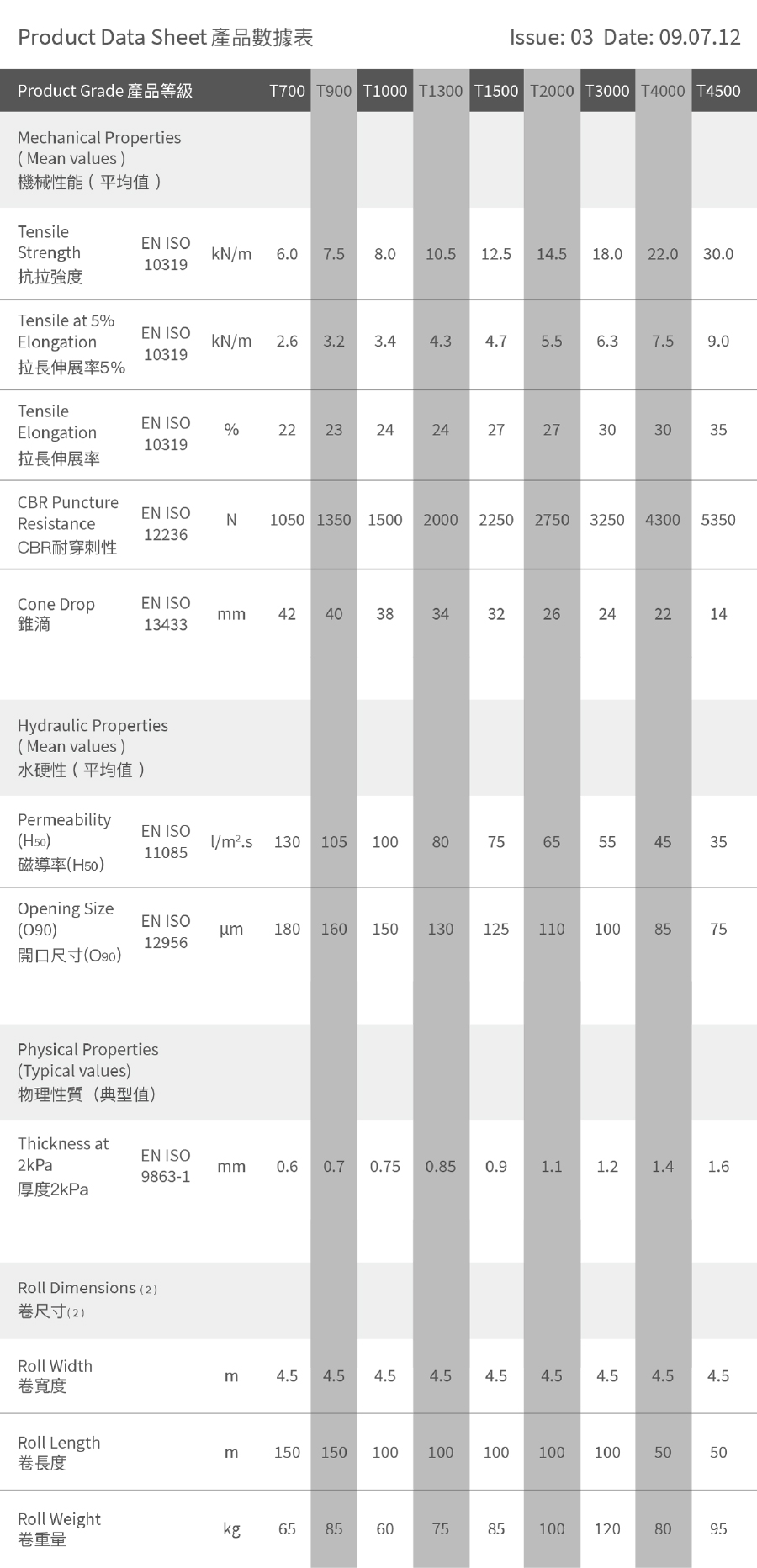

Terram Performance Data

Durability

This product is predicted to be durable for more than 25 years in soils with a pH in the range 2 to 14 and with a temperature of less than 250C.

Chemical Resistance

Polypropylene and polyethylene are unaffected by the chemicals which normally exist in soils.

Biological Resistance

Polypropylene and polyethylene are not nutrients for micro-organisms and do not provide nourishment for animals & insects.

UV Exposure

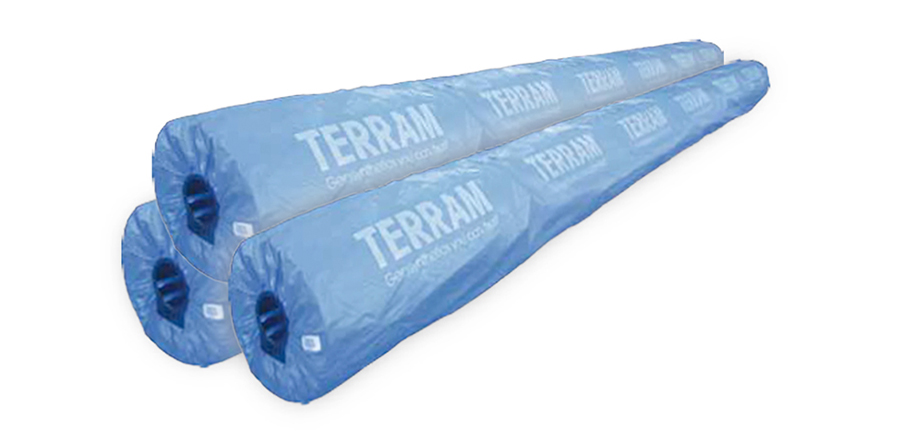

Fiberweb Geosynthetics’ products are delivered to site in polyethylene wrapping to protect against the effects of ultra-violet radiation. It is recommended that the products remain wrapped until their installation. Once unwrapped, the products should be completely covered with fill within 14 days to avoid exposure to UV radiation.

Versions of most products can be manufactured with enhanced UV performance by incorporating stabilisers. These versions carry the suffix UV. The remaining properties are identical to the corresponding standard grade. Adequate precautions should always be taken to protect all products from UV radiation to achieve the stated durability.
Notes:

1. Refer to the Terram Jointing Methods (downloadable from www.terram.com) for when simple overlaps are required for subsequent and adjacent roll lengths. However, pegging, sewing, stapling or gluing can also be used depending upon the application, the sub-grade conditions, the loading, the convenience and the cost.

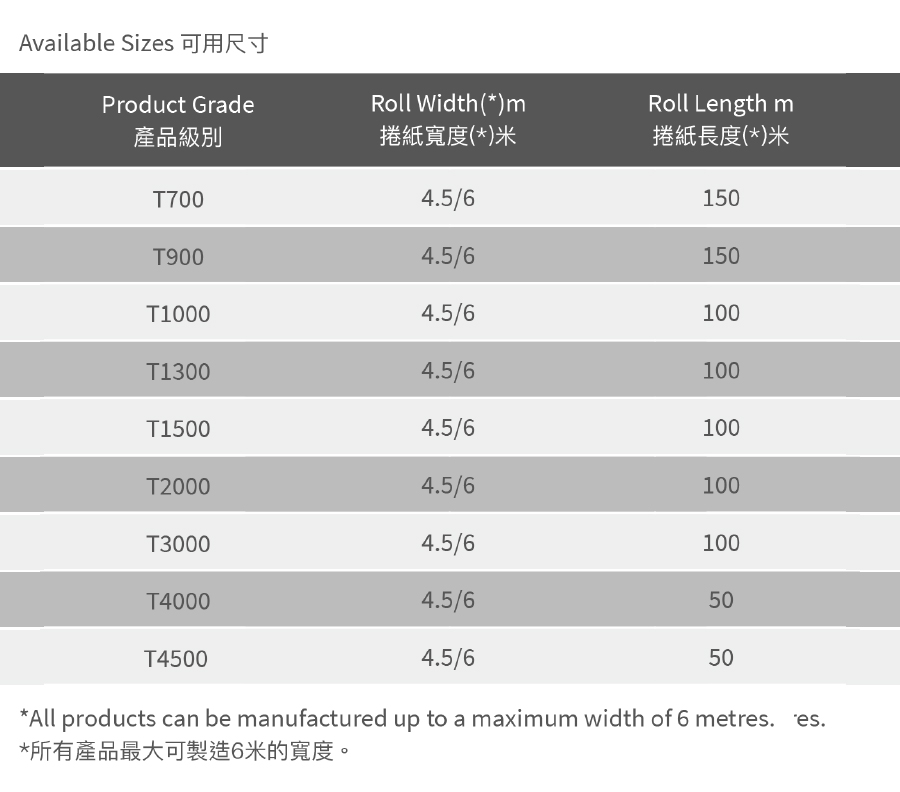

2. These figures relate to standard product weights and roll sizes. Other weights, sizes and colours may be available on request. For further information please contact Fiberweb Geosynthetics’ Technical Support.

As part of its continual improvement process Fiberweb Geosynthetics Ltd reserve the right to change the properties listed on this data sheet without prior notice.

TM indicates a trade mark of Fiberweb plc or a Fiberweb Group company, many of which are registered in a number of countries around the world.
